Dimensions
Technical Parameters
| Power Supply | DC24V, AC24V, AC110V, AC220V, AC380V |
| Standard Torque/Time | 200Nm /30S |
| Optional Torque/Time | 100Nm/15S, 200Nm/60S |
| Rotation Angle Range | Adjustable from 0 to 90 degrees |
| Motor Power/Current | DC24V：35W/3.57A AC24V：40W/3.65A AC110V：40W/0.65A AC220V：40W/0.37A AC380V：30W/0.15A |
| Control Circuit | Type A/B/C/D/E/F/G/H |
| Weight | 9Kg |
| Insulation Resistance | DC24V/AC24V： 100MΩ/250VDC AC110V/AC220V/AC380V： 100MΩ/500VDC |
| Withstand Voltage | DC24V/AC24V: 500VAC for 1 minute |
| Water Proof Level | IP67 |
| Installation | 360 ° installation at any angle |
| Electrical Interface | G1/2 waterproof cable connector: one power line and one signal line each |
| Working Temperature | -25℃ ~ +55℃ |
| Optional Function | Over torque protection, dehumidification heater, convex indicator, operating handwheel |
| Power Supply | DC24V, AC24V, AC110V, AC220V, AC380V |
| Standard Torque/Time | 400Nm/30S |
| Optional Torque/Time | 200Nm/15S, 400Nm/60S |
| Rotation Angle Range | Adjustable from 0 to 90 degrees |
| Motor power | DC24V：70W/5.13A AC24V：90W/6.80A AC110V：90W/1.12A AC220V：90W/0.57A AC380V：40W/0.29A |
| Control Circuit | Type A/B/C/D/E/F/G/H |
| Weight | 9.5Kg |
| Insulation Resistance | DC24V/AC24V： 100MΩ/250VDC AC110V/AC220V/AC380V： 100MΩ/500VDC |
| Withstand Voltage | DC24V/AC24V: 500VAC for 1 minute |
| Water Proof Level | IP67 |
| Installation | 360 ° installation at any angle |
| Electrical Interface | G1/2 waterproof cable connector: one power line and one signal line each |
| Working Temperature | -25℃ ~ +55℃ |
| Optional Function | Over torque protection, dehumidification heater, convex indicator, operating handwheel |
| Power Supply | DC24V, AC24V, AC110V, AC220V, AC380V |
| Standard Torque/Time | 600Nm/45S |
| Rotation Angle Range | Adjustable from 0 to 90 degrees |
| Motor power | DC24V：70W/6.04A AC24V：90W/6.80A AC110V：90W/1.18A AC220V：90W/0.6A AC380V：40W/0.29A |
| Control Circuit | Type A/B/C/D/E/F/G/H |
| Weight | 10Kg |
| Insulation Resistance | DC24V/AC24V： 100MΩ/250VDC AC110V/AC220V/AC380V： 100MΩ/500VDC |
| Withstand Voltage | DC24V/AC24V: 500VAC for 1 minute |
| Water Proof Level | IP67 |
| Installation | 360 ° installation at any angle |
| Electrical Interface | G1/2 waterproof cable connector: one power line and one signal line each |
| Working Temperature | -25℃ ~ +55℃ |
| Optional Function | Over torque protection, dehumidification heater, convex indicator, operating handwheel |
| Modulation Parameters | |
| Input Signal | 4~20mA, 0~10V arbitrary calibration |
| output Signal | 4~20mA, 0~10V arbitrary calibration |
| Bus | 485/Modbus/CAN |
| Internet of Things | WIFI/LoRA/4G |
| Basic Error | ≤±1% |
| Return Error | ≤1% |
| Hysteresis | Adjustable from 0.5% to 5.0% |
| Reposition Times | 0 times |
| Repeatability Error | ≤1% |
control circuit
[astra_custom_layout id=4879]

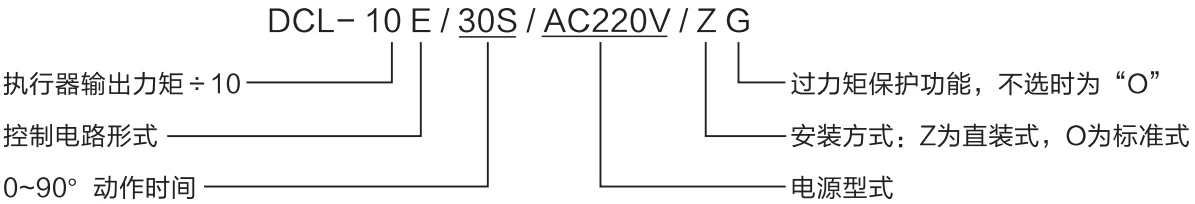

Product Ordering
View Technical Parameters for other models.
